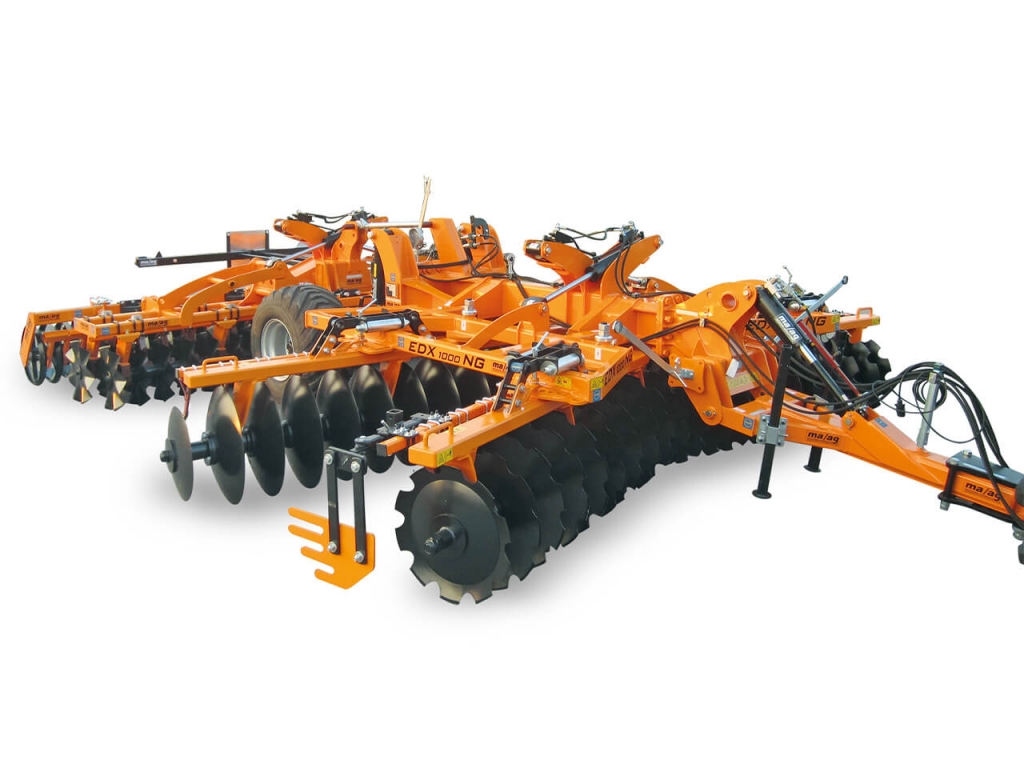

STANDARD EQUIPMENT
| EQUIPMENT | Trailed/ half - brought |
| TRACTOR ARM ATTACK | Swiveling (for half - brought equipment) |
| CENTRAL FRAME | Tubular steel 250x150x12,5 mm |
| SECTIONS | Tubular steel 140x70x7 mm |
| SUPPORTS | Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag |
| CARRIAGE CONTROL | Double effect jack with hydraulic slider for working depth regulation |
| DISC AXLE | Steel square 40x40 mm |
| WHEELS AXLE | Steel square 60x60 mm - 6 holes hub |
| WHEELS | 400/60-15.5 |
| SOIL SCRAPERS | Individual adjustable plungers |
| SECTIONS CONTROL | Manual with perforated plate. At demand, hydraulic and independent movement for front and rear |
| DISCS | Diam. 610 mm thickness 5 mm or Diam. 660 mm thickness 6 mm. disc distance 230 mm |
| PICK UP DISCS | On series |
EDX 1000 NG – 29 discs
| EDX 1000 NG 29 12 | EDX 1000 NG 29 13 | |
| DISCS N. | 29 | 29 |
| WORK. WIDTH | 3,40 | 3,40 |
| TRANSP. WIDTH | 2,55 | 2,55 |
| SUPPORTS N. | 8 | 8 |
| ROLLER KIT KG | 4250 | 4400 |
| ROLLER KIT HP | 150 | 160 |
| BREAKING KIT KG | 5550 | 5900 |
| BREAKING KIT HP | 180 | 190 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 1000 NG – 33 discs
| EDX 1000 NG 33 12 | EDX 1000 NG 33 13 | |
| DISCS N. | 33 | 33 |
| WORK. WIDTH | 3,85 | 3,85 |
| TRANSP. WIDTH | 2,55 | 2,55 |
| SUPPORTS N. | 8 | 8 |
| ROLLER KIT KG | 4450 | 4800 |
| ROLLER KIT HP | 170 | 180 |
| BREAKING KIT KG | 6150 | 6500 |
| BREAKING KIT HP | 200 | 210 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 1000 NG – 37 discs
| EDX 1000 NG 37 12 | EDX 1000 NG 37 13 | |
| DISCS N. | 37 | 37 |
| WORK. WIDTH | 4,30 | 4,30 |
| TRANSP. WIDTH | 2,55 | 2,55 |
| SUPPORTS N. | 10 | 10 |
| ROLLER KIT KG | 4900 | 5200 |
| ROLLER KIT HP | 190 | 200 |
| BREAKING KIT KG | 6650 | 7050 |
| BREAKING KIT HP | 220 | 230 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 1000 NG – 41 discs
| EDX 1000 NG 41 12 | EDX 1000 NG 41 13 | |
| DISCS N. | 41 | 41 |
| WORK. WIDTH | 4,75 | 4,75 |
| TRANSP. WIDTH | 2,55 | 2,55 |
| SUPPORTS N. | 12 | 12 |
| ROLLER KIT KG | 5250 | 5600 |
| ROLLER KIT HP | 230 | 250 |
| BREAKING KIT KG | 7150 | 7600 |
| KBREAKING KIT HP | 260 | 280 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
Accessories
| CODE | DESCRIPTION |
| ACEDX1000NG04 | Hydraulic movement rear sections |
| ACEDX1000NG05 | Hydraulic movement front and rear sections |
| ACEDX1000NG10 | Oversized wheels 500/50 - 17 and drive shaft 8 holes |
| ACEDX1000NG11 | Homologation for the transport on road (net price) |
| ACEDX1000NG12 | Light bar kit with support |
| ACEDX1000NG14 | Hydraulic kit device complete with pipes |
| ACEDX1000NG15 | Solenoid valve kit for hydraulic controls with control unit in the cab (each) |
CAGE ROLLER KIT
Rear cage roller kit with 10 tubes ø32mm, exterior diam. of the roller 520 mm mounted on supports with bearings and greaser. Complete with regulation group.
Accessories Cage roller kit EDX 1000 NG
| CODE | DESCRIPTION |
| ACRGEDX1NG29 | Cage roller diam. 520 mm with 10 tubes for EDX1000NG29 |
| ACRGEDX1NG33 | Cage roller diam. 520 mm with 10 tubes for EDX1000NG33 |
| ACRGEDX1NG37 | Cage roller diam. 520 mm with 10 tubes for EDX1000NG37 |
| ACRGEDX1NG41 | Cage roller diam. 520 mm with 10 tubes for EDX1000NG41 |
RING ROLLER KIT
Rear ring roller kit, exterior diam. of the roller 560 mm mounted on supports with bearings and greaser. Complete with regulation group.
Accessories Ring roller kit EDX 1000 NG
| CODE | DESCRIPTION |
| ACRAEDX1NG29 | Ring roller diam. 560 mm for EDX1000NG29 |
| ACRAEDX1NG33 | Ring roller diam. 560 mm for EDX1000NG33 |
| ACRAEDX1NG37 | Ring roller diam. 560 mm for EDX1000NG37 |
| ACRAEDX1NG41 | Ring roller diam. 560 mm for EDX1000NG41 |
PAKER ROLLER KIT
Rear paker roller kit, exterior diam. of the roller 406 mm mounted on supports with bearings and greaser. Complete with regulation group.
Accessories Paker roller kit EDX 1000 NG
| CODE | DESCRIPTION |
| ACPKEDX1NG29 | Paker roller diam. 460 mm for EDX1000NG29 |
| ACPKEDX1NG33 | Paker roller diam. 460 mm for EDX1000NG33 |
| ACPKEDX1NG37 | Paker roller diam. 460 mm for EDX1000NG37 |
| ACPKEDX1NG41 | Paker roller diam. 460 mm for EDX1000NG41 |
BREAKING KIT
Rear breaking kit, complete with III point linkage.
Version:
- double row of star and/or wavy self-cleaner discs
- cage roller diam.500 mm with tubes or ring roller diam. 560 mm
Accessories Breaking kit EDX 1000 NG
| CODE | DESCRIPTION |
| ACSMEDX1NG29 | Breaking kit for EDX1000NG29 |
| ACSMEDX1NG33 | Breaking kit for EDX1000NG33 |
| ACSMEDX1NG37 | Breaking kit for EDX1000NG37 |
| ACSMEDX1NG41 | Breaking kit for EDX1000NG41 |
