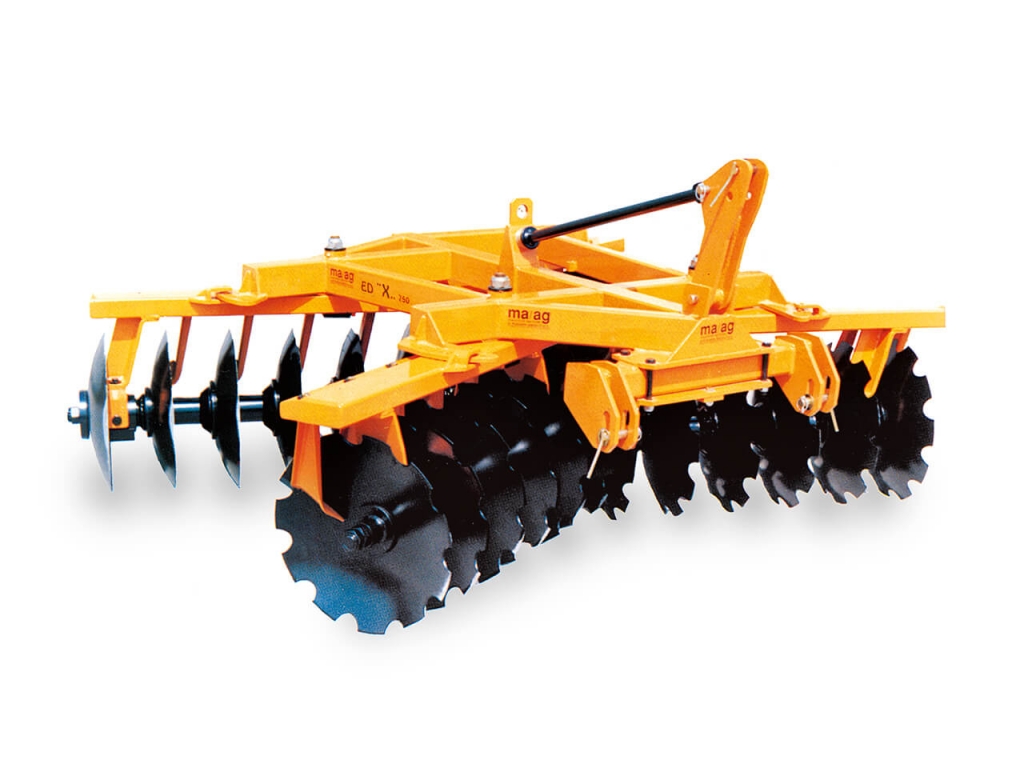

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDX disc harrows are characterized by a wide range of usage with working width from 1,50 m to 7,30 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the four sections of the discs, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground. The strong structure guarantees an adequate flex-torsion rigidity and allows (where expected) to complete the equipment with a wide range of accessories.
STANDARD EQUIPMENT
| FRAME | Tubular steel mm 120x100x7 |
| SECTIONS | Tubular steel mm 140x70x7 turning for reducing the encumbrance on road |
| SUPPORTS | Two conical roller bearing, swiveling, with interchangeable crankcase system ma/ag |
| DISC AXLE | Steel square 40x40 mm |
| SOIL SCRAPERS | Individual adjustable plungers |
| SECTIONS CONTROL | Manual, with plates and holes |
| DISCS | Diam. 610 mm thickness 5 mm or diam. 660 mm thickness 6 mm |
| The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order. |
ersion with disc distance 230 mm
EDX 780 – 21 discs
| EDX 780 21 12 | EDX 780 21 13 | |
| DISCS N. | 21 | 21 |
| WORK. WIDTH | 2,40 | 2,40 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 100 | 110 |
| KG | 1190 | 1310 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 780 – 25 discs
| EDX 780 25 12 | EDX 780 25 13 | |
| DISCS N. | 25 | 25 |
| WORK. WIDTH | 2,85 | 2,85 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 120 | 130 |
| KG | 1320 | 1480 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 780 – 29 discs
| EDX 780 29 12 | EDX 780 29 13 | |
| DISCS N. | 29 | 29 |
| WORK. WIDTH | 3,30 | 3,30 |
| TRANSP. WIDTH | 2,70 | 2,70 |
| SUPPORTS N | 8 | 8 |
| HP | 140 | 150 |
| KG | 1475 | 1650 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 780 – 30 discs
| EDX 780 33 12 | EDX 780 33 13 | |
| DISCS N. | 33 | 33 |
| WORK. WIDTH | 3,75 | 3,75 |
| TRANSP. WIDTH | 3,20 | 3,20 |
| SUPPORTS N. | 8 | 8 |
| HP | 160 | 170 |
| KG | 1630 | 1810 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
Version with disc distance 270 mm
EDX 780 – 17 discs
| EDX 780 17 22 | EDX 780 17 23 | |
| DISCS N. | 17 | 17 |
| WORK. WIDTH | 2,25 | 2,25 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 100 | 110 |
| KG | 1190 | 1290 |
| DISC DIST. | 270 | 270 |
| Ø DISC | 610/5 | 660/6 |
EDX 780 – 21 discs
| EDX 780 21 22 | EDX 780 21 23 | |
| DISCS N. | 21 | 21 |
| WORK. WIDTH | 2,80 | 2,80 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 120 | 130 |
| KG | 1245 | 1370 |
| DISC DIST. | 270 | 270 |
| Ø DISC | 610/5 | 660/6 |
EDX 780 – 25 discs
| EDX 780 25 22 | EDX 780 25 23 | |
| DISCS N. | 25 | 25 |
| WORK. WIDTH | 3,35 | 3,35 |
| TRANSP. WIDTH | 2,70 | 2,70 |
| SUPPORTS N. | 8 | 8 |
| HP | 140 | 150 |
| KG | 1350 | 1500 |
| DISC DIST. | 270 | 270 |
| Ø DISC | 610/5 | 660/6 |
EDX 780 – 29 discs
| EDX 780 29 22 | EDX 780 29 23 | |
| DISCS N. | 29 | 29 |
| WORK. WIDTH | 3,90 | 3,90 |
| TRANSP. WIDTH | 3,20 | 3,20 |
| SUPPORTS N. | 8 | 8 |
| HP | 160 | 170 |
| KG | 1530 | 1700 |
| DISC DIST. | 270 | 270 |
| Ø DISC | 610/5 | 660/6 |
Accessories
| CODE | DESCRIPTION |
| ACEDX78001 | Automatic linkage |
| ACEDX78002 | Couple of discs and distance piece |
| ACEDX78003 | Turning arm linkage |
