Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDV and EDV Idisc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.
STANDARD EQUIPMENT
| FRAME | Tubular steel 200x100x10 mm |
| SECTIONS | Tubular steel 200x100x10 mm |
| SUPPORTS | Two conical roller bearings swiveling, with interchangeable crankcase system ma/ag |
| CARRIAGE CONTROL | Double effect jack with hydraulic slider for working depth regulation |
| DISCS AXLE | Steel square 50x50 mm |
| SOIL SCRAPERS | Individual adjustable plungers |
| SECTIONS ANGULATION | Hydraulic |
| WHEELS AXLE | Steel square 80x80 mm - 8 holes hub |
| TOWING BEAM | Shift able and inclinable in different positions, hydraulic |
| Version with discs “Fleaux” type ø 810 mm thickness 10 mm disc distance 340 mm |

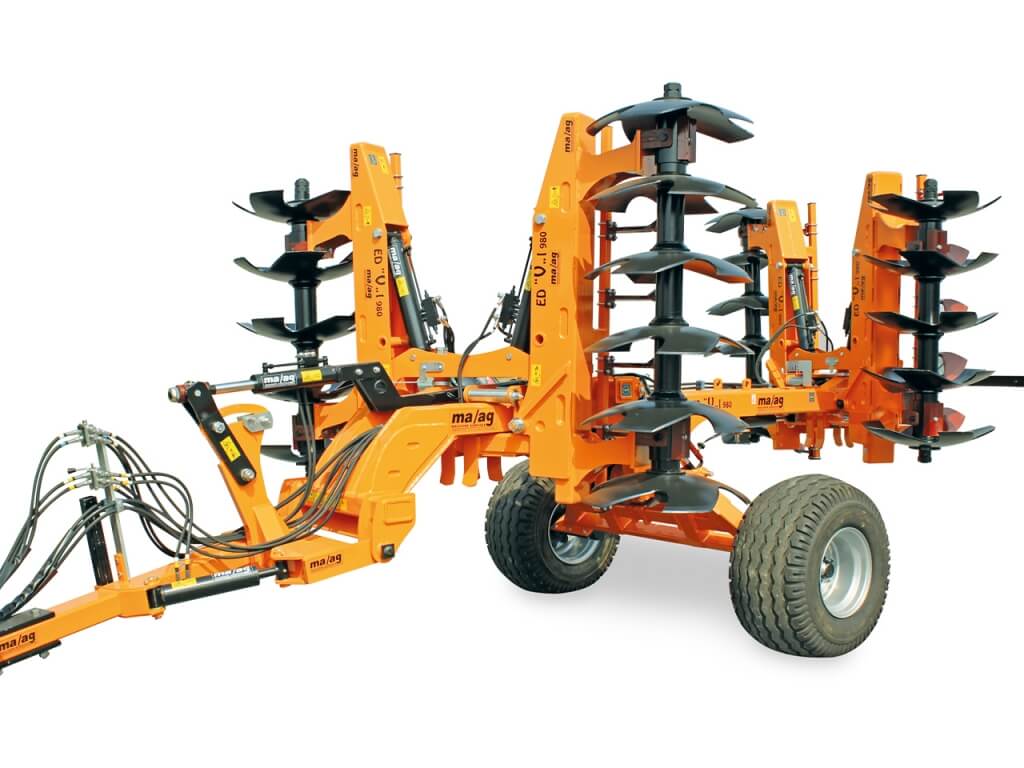

EDV I 980 Magnum – 22 discs
| Model | EDV I 980 SP 22 81 |
| DISCS N. | 22 |
| WORK. WIDTH | 3,60 |
| TRANSP. WIDTH | 2,70 |
| SUPPORT N. | 8 |
| HP | 180/200 |
| KG | 5160 |
| Ø DISC | 810/10 |
EDV I 980 Magnum – 26 discs
| Model | EDV I 980 SP 26 81 |
| DISCS N. | 26 |
| WORK. WIDTH | 4,30 |
| TRANSP. WIDTH | 2,70 |
| SUPPORT N. | 8 |
| HP | 200/250 |
| KG | 6030 |
| Ø DISC | 810/10 |
EDV I 980 Magnum – 30 discs
| Model | EDV I 980 SP 26 81 |
| DISCS N. | 30 |
| WORK. WIDTH | 5,00 |
| TRANSP. WIDTH | 2,70 |
| SUPPORT N. | 12 |
| HP | 240/280 |
| KG | 6470 |
| Ø DISC | 810/10 |
Accessories
| CODE | DESCRIPTION |
| ACEDVI980SP07 | Couple of oversized wheels 500/50 - 17 |
| ACEDVI980SP011 | Hydraulic kit device complete with pipes (each) |
| ACEDVI980SP14 | Light bar kit with support |
