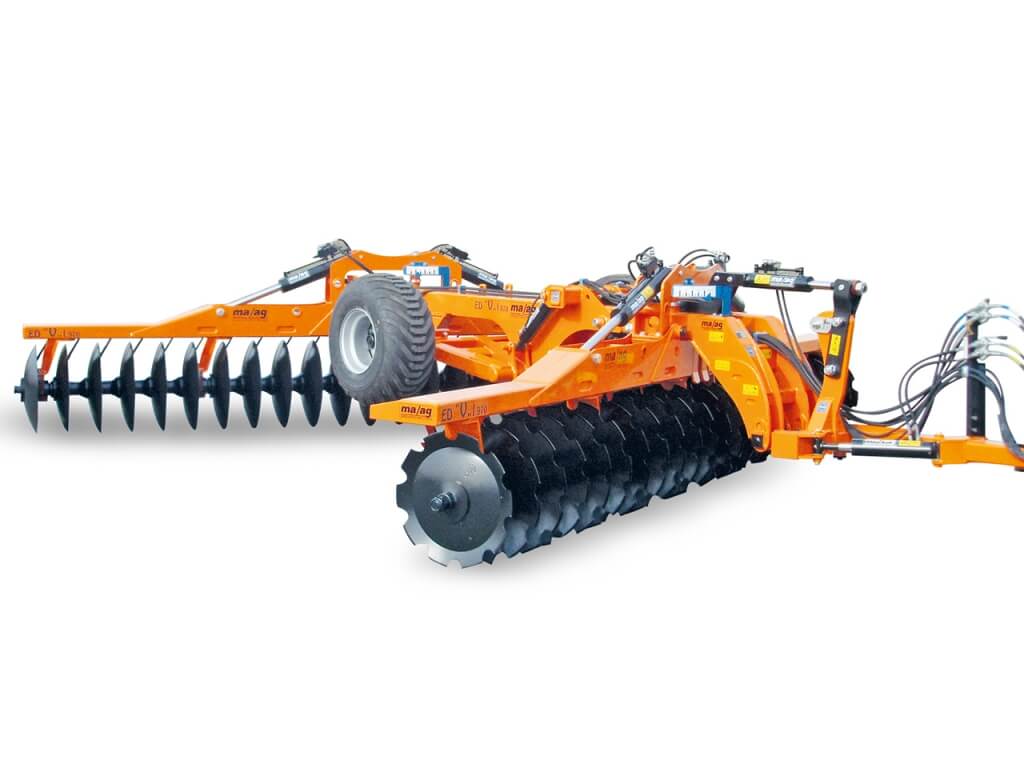

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.
STANDARD EQUIPMENT
| DOUBLE BEAM FRAME |
Tubular steel 150x100x8 mm |
| SECTIONS |
Tubular steel 200x100x8 mm |
| SUPPORTS |
Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag |
| CARRIAGE CONTROL |
Hydraulic, with 2 jacks with stop valve |
| DISCS AXLE |
Steel square 40x40 mm |
| WHEELS AXLE |
Steel square 60x60 mm 6 holes hub |
| TOWING BEAM |
Shift able and inclinable in different positions; hydraulic at demand |
| SECTIONS ANGULATION |
Hydraulic, independent front and rear |
| SOIL SCRAPERS |
Individual adjustable plungers |
| DISCS |
Diam. 610 mm thickness 5 mm - diam. 660 mm thickness 6 mm - diam. 710 mm thickness 7 mm |
| DISCS DISTANCE |
230 mm - 270 mm |
| . |
Vertical hydraulic folding in 2 sections for reducing the floor space during the transport (2,55 m only with discs ø 610 mm - ø 660 mm) |
| . |
The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order. |
Version with disc distance 230 mm
EDV I 970 – 36 discs
| Model |
EDV I 970 36 12 |
EDV I 970 36 13 |
| DISCS N. |
36 |
36 |
| WORK. WIDTH |
4,10 |
4,10 |
| TRANSP. WIDTH |
2,50 |
2,55 |
| SUPPORT N. |
10 |
10 |
| HP |
160 |
180 |
| KG |
3980 |
4090 |
| Ø DISC |
610/5 |
660/6 |
EDV I 970 – 40 discs
| Model |
EDV I 970 40 12 |
EDV I 970 40 13 |
| DISCS N. |
40 |
40 |
| WORK. WIDTH |
4,55 |
4,55 |
| TRANSP. WIDTH |
2,50 |
2,55 |
| SUPPORT N. |
12 |
12 |
| HP |
190 |
210 |
| KG |
4330 |
4450 |
| Ø DISC |
610/5 |
660/6 |
EDV I 970 – 44 discs
| Model |
EDV I 970 44 12 |
EDV I 970 44 13 |
| DISCS N. |
44 |
44 |
| WORK. WIDTH |
4,95 |
4,95 |
| TRANSP. WIDTH |
2,50 |
2,55 |
| SUPPORT N. |
12 |
12 |
| HP |
220 |
240 |
| KG |
4570 |
4680 |
| Ø DISC |
610/5 |
660/6 |
EDV I 970 – 48 discs
| Model |
EDV I 970 48 13 |
| DISCS N. |
48 |
| WORK. WIDTH |
5,40 |
| TRANSP. WIDTH |
2,55 |
| SUPPORT N. |
12 |
| HP |
280 |
| KG |
4930 |
| Ø DISC |
660/6 |
Version with disc distance 270 mm
EDV I 970 – 28 discs
| Model |
EDV I 970 28 23 |
EDV I 970 28 24 |
| DISCS N. |
28 |
28 |
| WORK. WIDTH |
3,60 |
3,60 |
| TRANSP. WIDTH |
2,55 |
2,65 |
| SUPPORT N. |
8 |
8 |
| HP |
150 |
160 |
| KG |
3830 |
3940 |
| Ø DISC |
660/6 |
710/7 |
EDV I 970 – 32 discs
| Model |
EDV I 970 32 23 |
EDV I 970 32 24 |
| DISCS N. |
32 |
32 |
| WORK. WIDTH |
4,30 |
4,30 |
| TRANSP. WIDTH |
2,55 |
2,65 |
| SUPPORT N. |
10 |
10 |
| HP |
170 |
180 |
| KG |
4110 |
4190 |
| Ø DISC |
660/6 |
710/7 |
EDV I 970 – 36 discs
| Model |
EDV I 970 36 23 |
EDV I 970 36 24 |
| DISCS N. |
36 |
36 |
| WORK. WIDTH |
4,75 |
4,75 |
| TRANSP. WIDTH |
2,55 |
2,65 |
| SUPPORT N. |
12 |
12 |
| HP |
190 |
210 |
| KG |
4260 |
4350 |
| Ø DISC |
660/6 |
710/7 |
EDV I 970 – 40 discs
| Model |
EDV I 970 40 23 |
EDV I 970 40 24 |
| DISCS N. |
40 |
40 |
| WORK. WIDTH |
5,10 |
5,10 |
| TRANSP. WIDTH |
2,55 |
2,65 |
| SUPPORT N. |
12 |
12 |
| HP |
220 |
260 |
| KG |
4470 |
4590 |
| Ø DISC |
660/6 |
710/7 |
EDV I 970 – 44 discs
| Model |
EDV I 970 44 23 |
| DISCS N. |
44 |
| WORK. WIDTH |
5,70 |
| TRANSP. WIDTH |
2,65 |
| SUPPORT N. |
12 |
| HP |
300 |
| KG |
4950 |
| Ø DISC |
660/6 |
Accessories EDV I 970
| CODE |
DESCRIPTION |
| ACEDVI97002 |
Disc and distance piece with soil scraper |
| ACEDVI97003 |
Hydraulic movement of the towing beam |
| ACEDVI97004 |
Supports for mounting the discs 610/6 (each disc) |
| ACEDVI97005 |
Additional supports for EDVI |
| ACEDVI97008 |
Kit hydraulic regulation balance machine |
| ACEDVI97009 |
Couple of oversized wheels 400/60 - 15.5 |
| ACEDVI97010 |
Kit central discs cleaner (each) |
| ACEDVI97011 |
Hydraulic kit device complete with pipes (each) |
| ACEDVI97013 |
Dislocated towing bell |
| ACEDVI97014 |
Light bar kit with support |
| ACEDVI97015 |
Solenoid valve kit for hydraulic controls with control unit in the cab. |
| ACEDVI97016 |
Increase for oil bath supports for disc distance 230 mm (each) |
| ACEDVI97017 |
Increase for oil bath supports for disc distance 270 mm (each) |
CAGE ROLLER KIT
Rear hydraulic kit with cage roller diameter 550 with n. 10 pipes or plates, complete with adjustable compensation springs. Foldable in two sections.
At the order, please specify if the roller is with pipes or plates.
For coupling disc harrows with distance 270 mm, please consider the bigger model.
Accessories Roller for EDV I 950 and EDV I 970
| CODE |
DESCRIPTION |
| ACRGEDVI90032 |
Cage roller kit with pipes or plates for EDVI950/970 32 |
| ACRGEDVI90036 |
Cage roller kit with pipes or plates for EDVI950/970 36 |
| ACRGEDVI90040 |
Cage roller kit with pipes or plates for EDVI950/970 40 |
| ACRGEDVI90044 |
Cage roller kit with pipes or plates for EDVI970 44 |
HARROW COMB DISC KIT
Rear harrow comb kit with springs inclination diam.12 mm, manually adjustable.
For coupling disc harrows with distance 270 mm, please consider the bigger model.
Accessories Harrow Comb Disc Kit for EDV I 950 and EDV I 970
| CODE |
DESCRIPTION |
| ACSTEDVI90032 |
Harrow comb kit for EDVI950/970 32 |
| ACSTEDVI90036 |
Harrow comb kit for EDVI950/970 36 |
| ACSTEDVI90040 |
Harrow comb kit for EDVI950/970 40 |
| ACSTEDVI90044 |
Harrow comb kit for EDVI970 44 |
