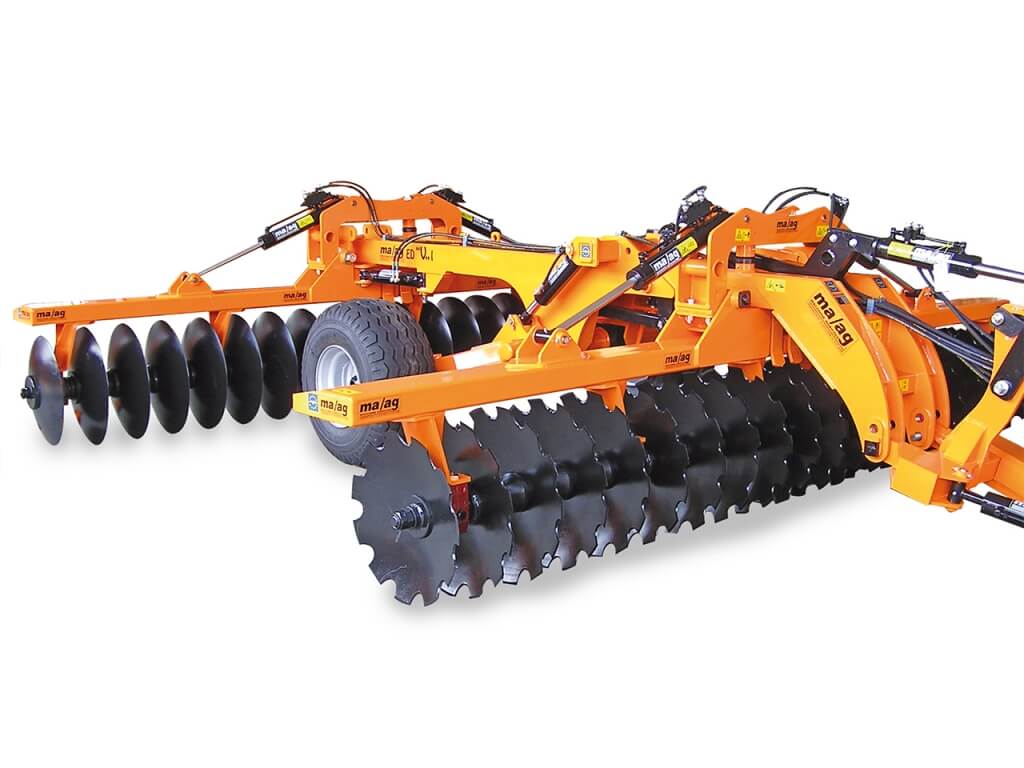

Grapă cu discuri în ‘V’ tractată, cadru rabatabil, MAAG EDV I 950

Descriere

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.

STANDARD EQUIPMENT

DOUBLE BEAM FRAME	Tubular steel 120x100x8 mm - double beam
SECTIONS	Tubular steel 160x80x8 mm
SUPPORTS	Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL	Double effect jack with hydraulic slider for working depth regulation
DISC AXLE	Steel square 40x40 mm
WHEELS AXLE	Steel square 60x60 mm - 6 holes hub
TOWING BEAM	Shift able and inclinable in different positions; hydraulic at demand
SECTIONS ANGULATION	Hydraulic, independent front and rear
SOIL SCRAPERS	Individual adjustable plungers
DISCS	Diam. 610 mm thickness 5 mm - diam. 610 mm thickness 6 mm - diam. 660 mm thickness 6 mm
DISCS DISTANCE	230 mm
.	Vertical hydraulic folding in 2 sections for reducing the encumbrance during the transport 2.55 m
.	The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order.

EDV I 950 - 32 discs

Model	EDV I 950 32 12	EDV I 950 32 13
DISCS N.	32	32
WORK. WIDTH	3,65	3,65
TRANSP. WIDTH	2,50	2,50
SUPPORT N.	8	8
HP	140	150
KG	3000	3230
INT.	230	230
Ø DISC	610/5	610/6

EDV I 950 - 36 discs

Model	EDV I 950 36 12	EDV I 950 36 13
DISCS N.	36	36
WORK. WIDTH	4,10	4,10
TRANSP. WIDTH	2,50	2,50
SUPPORT N.	10	10
HP	160	180
KG	3240	3440
INT.	230	230
Ø DISC	610/5	610/6

EDV I 950 - 40 discs

Model	EDV I 950 40 12	EDV I 950 40 13
DISCS N.	40	40
WORK. WIDTH	4,55	4,55
TRANSP. WIDTH	2,50	2,50
SUPPORT N.	12	12
HP	190	210
KG	3450	3680
DISC DIST.	230	230
Ø DISC	610/5	610/6

Accessories

CODE	DESCRIPTION
ACEDVI95002	Disc and distance piece with soil scraper
ACEDVI95003	Hydraulic movement of the towing beam
ACEDVI95004	Hooking up of discs, diameter 610/6 (each disc)
ACEDVI95005	Additional supports for EDVI
ACEDVI95008	Kit regulation hydraulic balance machine
ACEDVI95009	Couple of oversized wheels
ACEDVI95010	Kit central discs cleaner (each)
ACEDVI95011	Hydraulic kit device complete with pipes
ACEDVI95013	Dislocated towing bell
ACEDVI95014	Light bar kit with support
ACEDVI95015	Solenoid valve kit for hydraulic controls with control unit in the cab.

CAGE ROLLER KIT
Rear hydraulic kit with cage roller diameter 550 with n. 10 pipes or plates, complete with adjustable compensation springs. Foldable in two sections.
At the order, please specify if the roller is with pipes or plates.
For coupling disc harrows with distance 270 mm, please consider the bigger model.

Accessories Roller for EDV I 950 and EDV I 970

CODE	DESCRIPTION
ACRGEDVI90032	Cage roller kit with pipes or plates for EDVI950/970 32
ACRGEDVI90036	Cage roller kit with pipes or plates for EDVI950/970 36
ACRGEDVI90040	Cage roller kit with pipes or plates for EDVI950/970 40
ACRGEDVI90044	Cage roller kit with pipes or plates for EDVI970 44

HARROW COMB DISC KIT
Rear harrow comb kit with springs inclination diam.12 mm, manually adjustable.
For coupling disc harrows with distance 270 mm, please consider the bigger model.

Accessories Harrow Comb Disc Kit for EDV I 950 and EDV I 970

CODE	DESCRIPTION
ACSTEDVI90032	Harrow comb kit for EDVI950/970 32
ACSTEDVI90036	Harrow comb kit for EDVI950/970 36
ACSTEDVI90040	Harrow comb kit for EDVI950/970 40
ACSTEDVI90044	Harrow comb kit for EDVI970 44
