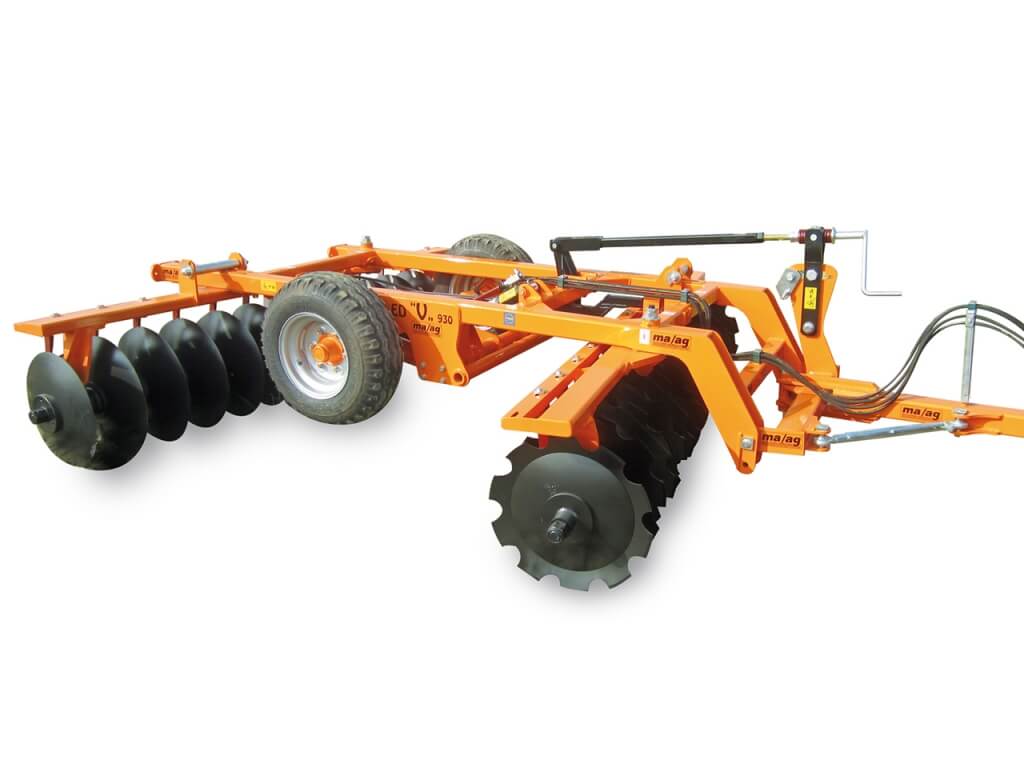

Grapă cu discuri în ‘V’ tractată, cadru fix, MAAG EDV 930

Producător: MAAG Piese MAAG

Descriere

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV Idisc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.

STANDARD EQUIPMENT

FRAME Tubular steel 100x100x7 mm
SECTIONS Tubular steel 120x60x7 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL Double effect jack with hydraulic slider for working depth regulation
DISC AXLE Steel square 40x40 mm
WHEELS AXLE Square 60x60 mm - 6 holes hub
TOWING BEAM Shift able and inclinable in different positions
SOIL SCRAPERS Individual adjustable plungers
DISCS Diam. 610 mm thickness 5 mm or diam. 660 mm thickness 6 mm
DISC DISTANCE 230 mm
. The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order.

EDV 930 - 18discs

Model EDV 930 18 12 EDV 930 18 13
DISCS N. 18 18
WORK. WIDTH 2,00 2,00
TRANSP. WIDTH 2,10 2,10
SUPPORT N. 6 6
HP 60 70
KG 1470 1565
Ø DISC 610/5 660/6

EDV 930 - 20discs

Model EDV 930 20 12 EDV 930 20 13
DISCS N. 20 20
WORK. WIDTH 2,25 2,25
TRANSP. WIDTH 2,35 2,35
SUPPORT N. 6 6
HP 70 80
KG 1560 1675
Ø DISC 610/5 660/6

EDV 930 - 22discs

Model EDV 930 22 12 EDV 930 22 13
DISCS N. 22 22
WORK. WIDTH 2,50 2,50
TRANSP. WIDTH 2,55 2,55
SUPPORT N. 6 6
HP 80 90
KG 1620 1735
Ø DISC 610/5 660/6

EDV 930 - 24discs

Model EDV 930 24 12 EDV 930 24 13
DISCS N. 24 24
WORK. WIDTH 2,75 2,75
TRANSP. WIDTH 2,80 2,80
SUPPORT N. 8 8
HP 90 100
KG 1680 1810
Ø DISC 610/5 660/6

EDV 930 - 26discs

Model EDV 930 26 12 EDV 930 26 13
DISCS N. 26 26
WORK. WIDTH 2,95 2,95
TRANSP. WIDTH 3,10 3,10
SUPPORT N. 8 8
HP 110 120
KG 1730 1890
Ø DISC 610/5 660/6

EDV 930 - 28discs

Model EDV 930 28 12 EDV 930 28 13
DISCS N. 28 28
WORK. WIDTH 3,20 3,20
TRANSP. WIDTH 3,25 3,25
SUPPORT N. 8 8
HP 120 130
KG 1790 1960
Ø DISC 610/5 660/6

Accessories

CODE DESCRIPTION
ACEDV93002 Disc and distance piece with soil scraper
ACEDV93003 Hydraulic movement of the towing beam
ACEDV93004 Hooking up of discs, diameter 610/6 (each disc)
ACEDV93005 Additional charge for N.2 supports for EDV950/20 and EDV950/22
ACEDV93006 Dislocated towing bell
ACEDV93007 Support beam foot
ACEDV93010 Kit central discs cleaner
ACEDV93011 Hydraulic kit device complete with pipes
ACEDV93012 Kit hydraulic regulation balance machine
