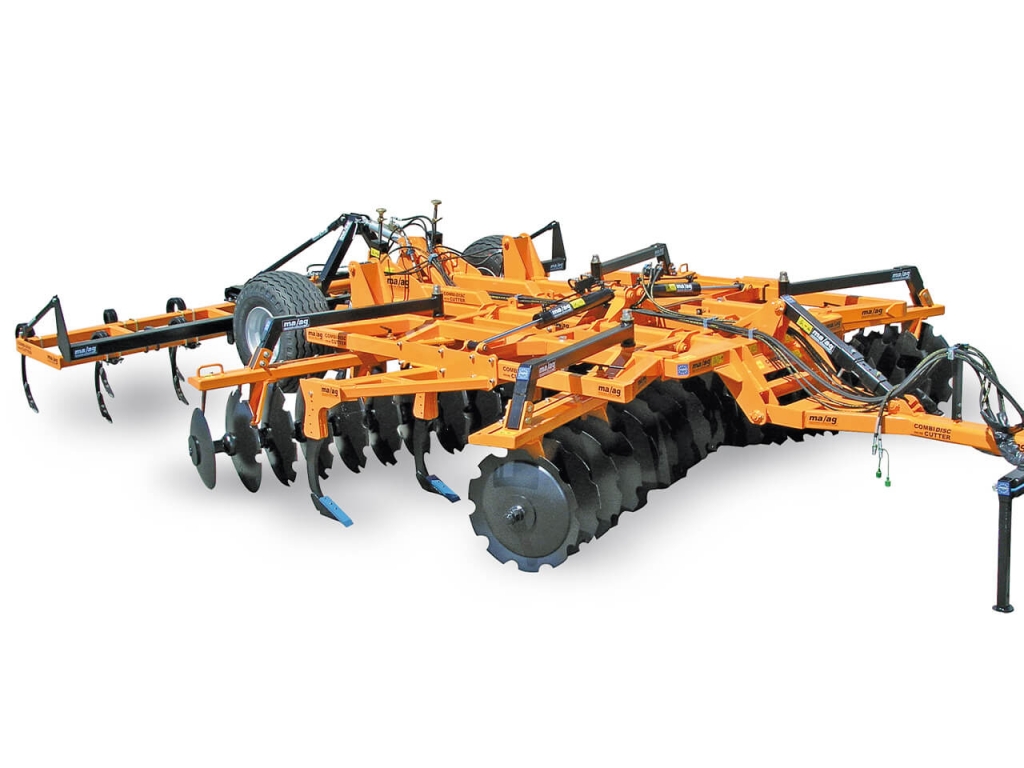

Innovative machine for working the soil, ideal for mixing the land and the landfill of the crop residues. Ideal for breaking the clods and also for obtaining a perfect plan of work. This equipment develops a substantial reduction of the working time, with a very significant save in fuel, manpower and wear of the tractor. On the rear, the equipment has a III points linkage, furnished on series, for completing the work.
STANDARD EQUIPMENT
| Combined half-brought machine made with the following basic structure: |
| Tractor arm linkage |
| Front discs manually adjustable in 5 different positions |
| Rear discs manually adjustable in 5 different positions |
| Hydraulic chariot for transport and regulation of working depth |
| III points linkage for rear application |
| In the intermediate position between the two discs, the machine can be equipped with a grubber kit with fixed anchors or with a toothed flat breaking discs. On the rear the machine can be equipped with a grubber/ subsoiler (square spring 30x30 mm or fixed anchors rigid type) or breaking kit (made of a double row of toothed flat discs and a cage roller Ø 500 mm). cast iron roller of different type (to be requested). |
CDC COMBI DISC half-brought version
CDC COMBI DISC CUTTER – 24 discs
| CDC COMBI DISC CUTTER 24 12 | CDC COMBI DISC CUTTER 24 13 | |
| DISCS N. | 24 | 24 |
| WORK. WIDTH | 2,95 | 2,95 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| ANCHORS N. | 8 | 8 |
| HP | 100 | 110 |
| KG | 2810 | 2940 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDC COMBI DISC CUTTER – 28 discs
| CDC COMBI DISC CUTTER 28 12 | CDC COMBI DISC CUTTER 28 13 | |
| DISCS N. | 28 | 28 |
| WORK. WIDTH | 3,40 | 3,40 |
| TRANSP. WIDTH | 3,50 | 3,50 |
| ANCHORS N. | 8 | 8 |
| HP | 110 | 130 |
| KG | 3050 | 3200 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDC COMBI DISC CUTTER – 32 discs
| CDC COMBI DISC CUTTER 32 12 | CDC COMBI DISC CUTTER 32 13 | |
| DISCS N. | 32 | 32 |
| WORK. WIDTH | 3,85 | 3,85 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| ANCHORS N. | 8 | 8 |
| HP | 140 | 150 |
| KG | 3410 | 3580 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDC COMBI DISC CUTTER – 36 discs
| CDC COMBI DISC CUTTER 36 12 | CDC COMBI DISC CUTTER 36 13 | |
| DISCS N. | 36 | 36 |
| WORK. WIDTH | 4,30 | 4,30 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| ANCHORS N. | 12 | 12 |
| HP | 160 | 180 |
| KG | 3620 | 3810 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDC COMBI DISC CUTTER – 40 discs
| CDC COMBI DISC CUTTER 40 12 | CDC COMBI DISC CUTTER 40 13 | |
| DISCS N. | 40 | 40 |
| WORK. WIDTH | 4,75 | 4,75 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| ANCHORS N. | 12 | 12 |
| HP | 190 | 210 |
| KG | 3870 | 4080 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDC COMBI DISC Half-brought version HEAVY
CDCP COMBI DISC CUTTER – 40 discs
| CDCP COMBI DISC CUTTER 40 12 | CDCP COMBI DISC CUTTER 40 13 | |
| DISCS N. | 40 | 40 |
| WORK. WIDTH | 4,75 | 4,75 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| ANCHORS N. | 12 | 12 |
| HP | 220 | 230 |
| KG | 4380 | 4590 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDCP COMBI DISC CUTTER – 52 discs
| CDCP COMBI DISC CUTTER 52 12 | CDCP COMBI DISC CUTTER 52 13 | |
| DISCS N. | 52 | 52 |
| WORK. WIDTH | 6,10 | 6,10 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| ANCHORS N. | 16 | 16 |
| HP | 240 | 280 |
| KG | 5650 | 5930 |
| DISC DIST.. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
CDCP COMBI DISC CUTTER – 60 discs
| CDCP COMBI DISC CUTTER 60 12 | CDCP COMBI DISC CUTTER 60 13 | |
| DISCS N. | 60 | 60 |
| WORK. WIDTH | 7,00 | 7,00 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| ANCHORS N. | 16 | 16 |
| HP | 290 | 330 |
| KG | 6580 | 6900 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
Accessories
| CODE | DESCRIPTION |
| ACCDC01 | Hydraulic handling, rear sections |
| ACCDC02 | Hydraulic handling, front and rear sections |
| ACCDC03 | Hooking up discs 710/7 instead of 660/6 (each) |
| ACCDC04 | Oversize wheels 400/60 - 15.5 |
| ACCDC05 | Hectare counter 500/50 - 17 e semiassi 8 fori |
| ACCDC07 | Hydraulic kit for attack III point linkage |
Rigid anchors kit, intermediate
| CODE | DESCRIPTION |
| ACCDC2404 | Middle anchors kit for CDC 24 |
| ACCDC2804 | Middle anchors kit for CDC 28 |
| ACCDC3204 | Middle anchors kit for CDC 32 |
| ACCDC3604 | Middle anchors kit for CDC 36 |
| ACCDC4004 | Middle anchors kit for CDC 40 |
| ACCDCP4004 | Middle anchors kit for CDCP 40 |
| ACCDCP5204 | Middle anchors kit for CDCP 52 |
| ACCDCP6004 | Middle anchors kit for CDCP 60 |
| CODE | DESCRIPTION |
| ACCDC2405 | Middle breaking kit for CDC 24 |
| ACCDC2805 | Middle breaking kit for CDC 28 |
| ACCDC3205 | Middle breaking kit for CDC 32 |
| ACCDC3605 | Middle breaking kit for CDC 36 |
| ACCDC4005 | Middle breaking kit for CDC 40 |
| ACCDCP4005 | Middle breaking kit for CDCP 40 |
| ACCDCP5205 | Middle breaking kit for CDCP 52 |
| ACCDCP6005 | Middle breaking kit for CDCP 60 |
Rear breaking kit, complete with III point linkage, in the version: double row of toothed/plan discs - Cage roller diam. 500
| CODE | DESCRIPTION |
| ACCDC2401 | Breaking kit for CDC 24 |
| ACCDC2801 | Breaking kit for CDC 28 |
| ACCDC3201 | Breaking kit for CDC 32 |
| ACCDC3601 | Breaking kit for CDC 36 |
| ACCDC4001 | Breaking kit for CDC 40 |
| ACCDCP4001 | Breaking kit for CDCP 40 |
| ACCDCP5201 | Breaking kit for CDCP 52 |
| ACCDCP6001 | Breaking kit for CDCP 60 |
Rear grubber kit with spring Q. 30x30 disposed on 2 working rows. Complete with III point linkage
| CODE | DESCRIPTION |
| ACCDC2402 | Grubber kit for CDC 24 |
| ACCDC2802 | Grubber kit for CDC 28 |
| ACCDC3202 | Grubber kit for CDC 32 |
| ACCDC3602 | Grubber kit for CDC 36 |
| ACCDC4002 | Grubber kit for CDC 40 |
| ACCDCP4002 | Grubber kit for CDCP 40 |
| ACCDCP5202 | Grubber kit for CDCP 52 |
| ACCDCP6002 | Grubber kit for CDCP 60 |
Rear subsoiler kit with rigid anchors disposed on 2 working rows. Complee with III point linkage
| CODE | DESCRIPTION |
| ACCDC2403 | Subsoiler kit for CDC 24 |
| ACCDC2803 | Subsoiler kit for CDC 28 |
| ACCDC3203 | Subsoiler kit for CDC 32 |
| ACCDC3603 | Subsoiler kit for CDC 36 |
| ACCDC4003 | Subsoiler kit for CDC 40 |
| ACCDCP4003 | Subsoiler kit for CDCP 40 |
| ACCDCP5203 | Subsoiler kit for CDCP 52 |
| ACCDCP6003 | Subsoiler kit for CDCP 60 |
