STANDARD EQUIPMENT
| FRAME | Tubular steel 100x100x7 mm |
| SECTIONS | Tubular steel 120x60x7 mm |
| SUPPORTS | Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag |
| CARRIAGE CONTROL | Double effect jack with hydraulic spider for working depth regulation |
| DISC AXLE | Steel square 40x40 mm |
| WHEELS AXLE | Steel square 60x60 mm - 6 holes hub |
| SOIL SCRAPERS | Individual adjustable plungers |
| SECTIONS CONTROL | Manual, hydraulic at demand |
| DISCS | Diam. 610 mm thickness 5 mm or diam. 660 mm thickness 6 mm. Disc distance 230 mm |
| PICK UP DISCS | On series with soil scrapers |
| The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order. |

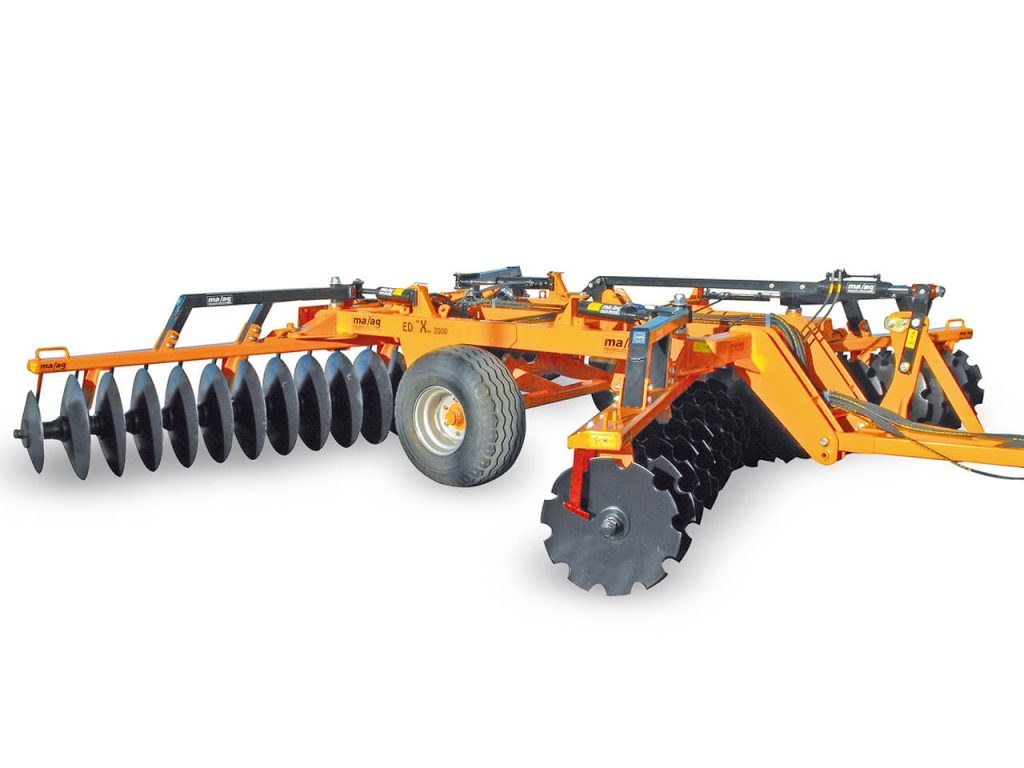

EDX 2000 N – 24 discs
| EDX 2000 N 24 12 | EDX 2000 N 24 13 | |
| DISCS N. | 24 | 24 |
| WORK. WIDTH | 2,95 | 2,95 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 100 | 110 |
| KG | 2040 | 2160 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 2000 N – 28 discs
| EDX 2000 N 28 12 | EDX 2000 N 28 13 | |
| DISCS N. | 28 | 28 |
| WORK. WIDTH | 3,40 | 3,40 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 120 | 130 |
| KG | 2180 | 2380 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 2000 N – 32 discs
| EDX 2000 N 32 12 | EDX 2000 N 32 13 | |
| DISCS N. | 32 | 32 |
| WORK. WIDTH | 3,85 | 3,85 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 8 | 8 |
| HP | 130 | 140 |
| KG | 2350 | 2520 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
EDX 2000 N – 36 discs
| EDX 2000 N 36 12 | EDX 2000 N 36 13 | |
| DISCS N. | 36 | 36 |
| WORK. WIDTH | 4,30 | 4,30 |
| TRANSP. WIDTH | 2,50 | 2,50 |
| SUPPORTS N. | 12 | 12 |
| HP | 150 | 160 |
| KG | 2670 | 2850 |
| DISC DIST. | 230 | 230 |
| Ø DISC | 610/5 | 660/6 |
Accessories
| CODE | DESCRIPTION |
| ACEDX200001 | Central disc with soil scraper |
| ACEDX200002 | Central anchor |
| ACEDX200003 | Hooking up of discs 610/6 (each) |
| ACEDX200004 | Hydraulic system for posterior sections |
| ACEDX200005 | Hydraulic system for front and rear sections |
| ACEDX200006 | Additional jack for carriage (recommended if you mount roller kit) |
| ACEDX200007 | Kit regulation hydraulic balance machine |
| ACEDX200008 | Additional n.2 supports for EDX2000 |
| ACEDX200010 | Oversized wheels 400/60 - 15.5 |
| ACEDX200011 | Homologation for the transport on road (net price) |
| ACEDX200012 | Light bar kit with support |
| CODE | DESCRIPTION |
| ACRGEDX2NP24 | Cage roller diameter 500 10 pipes for EDX2000N/P24 |
| ACRGEDX2NP28 | Cage roller diameter 500 10 pipes for EDX2000N/P28 |
| ACRGEDX2NP32 | Cage roller diameter 500 10 pipes for EDX2000N/P32 |
| ACRGEDX2NP36 | Cage roller diameter 500 10 pipes for EDX2000N/P36 |
| ACRGEDX2NP40 | Cage roller diameter 500 10 pipes for EDX2000N/P40 |
| ACRGEDX2NP44 | Cage roller diameter 500 10 pipes for EDX2000N/P44 |
| ACRGEDX3P48 | Cage roller diameter 500 10 pipes for EDX3000NP/48 |
| ACRGEDX3P52 | Cage roller diameter 500 10 pipes for EDX3000NP/52 |
| ACRGEDX3P56 | Cage roller diameter 500 10 pipes for EDX3000NP/56 |
| ACRGEDX3P60 | Cage roller diameter 500 10 pipes for EDX3000NP/60 |
Accessories Hydraulic rear spiral roller
| CODE | DESCRIPTION |
| ACRSEDX2NP24 | Spiral roller for EDX2000N/P24 |
| ACRSEDX2NP28 | Spiral roller for EDX2000N/P28 |
| ACRSEDX2NP32 | Spiral roller for EDX2000N/P32 |
| ACRSEDX2NP36 | Spiral roller for EDX2000N/P36 |
| ACRSEDX2NP40 | Spiral roller for EDX2000N/P40 |
| ACRSEDX2NP44 | Spiral roller for EDX2000N/P44 |
| ACRSEDX3P48 | Spiral roller for EDX3000NP/48 |
| ACRSEDX3P52 | Spiral roller for EDX3000NP/52 |
| ACRSEDX3P56 | Spiral roller for EDX3000NP/56 |
| ACRSEDX3P60 | Spiral roller for EDX3000NP/60 |
Accessories Rear hydraulic grubber kit - square spring 30x30
| CODE | DESCRIPTION |
| ACEQEDX2NP24 | Kit grubber spring Q30X30 for EDX2000N/P24 |
| ACEQEDX2NP28 | Kit grubber spring Q30X30 for EDX2000N/P28 |
| ACEQEDX2NP32 | Kit grubber spring Q30X30 for EDX2000N/P32 |
| ACEQEDX2NP36 | Kit grubber spring Q30X30 for EDX2000N/P36 |
| ACEQEDX2NP40 | Kit grubber spring Q30X30 for EDX2000N/P40 |
| ACEQEDX2NP44 | Kit grubber spring Q30X30 for EDX2000N/P44 |
| ACEQEDX3P48 | Kit grubber spring Q30X30 for EDX3000NP/48 |
| ACEQEDX3P52 | Kit grubber spring Q30X30 for EDX3000NP/52 |
| ACEQEDX3P56 | Kit grubber spring Q30X30 for EDX3000NP/56 |
| ACEQEDX3P60 | Kit grubber spring Q30X30 for EDX3000NP/60 |
Accessories Rear hydraulic grubber kit with rigid anchors
| COD. | DESCRIZIONE |
| ACETEDX2NP24 | Grubber kit with rigid anchors for EDX2000N/P24 |
| ACETEDX2NP28 | Grubber kit with rigid anchors for EDX2000N/P28 |
| ACETEDX2NP32 | Grubber kit with rigid anchors for EDX2000N/P32 |
| ACETEDX2NP36 | Grubber kit with rigid anchors for EDX2000N/P36 |
| ACETEDX2NP40 | Grubber kit with rigid anchors for EDX2000N/P40 |
| ACETEDX2NP44 | Grubber kit with rigid anchors for EDX2000N/P44 |
| ACETEDX3P48 | Grubber kit with rigid anchors for EDX3000NP/48 |
| ACETEDX3P52 | Grubber kit with rigid anchors for EDX3000NP/52 |
| ACETEDX3P56 | Grubber kit with rigid anchors for EDX3000NP/56 |
| ACETEDX3P60 | Grubber kit with rigid anchors for EDX3000NP/60 |
